BGB系列高效薄膜包衣機 |
|

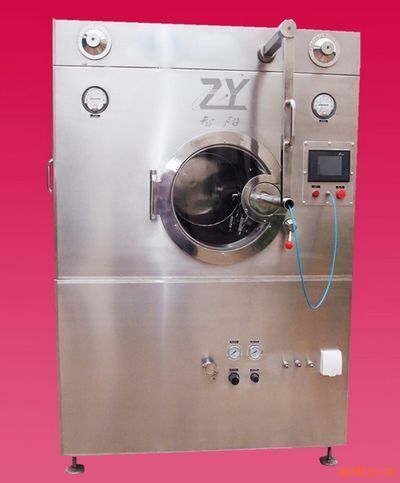

BGB Series High-efficiency Film Coating Machine |
|
★應用概述 :General of applications |
|
※BGB系列高效包衣機主要用于制藥及食品工業，是片劑、丸劑、糖果等進行有機薄膜包衣、水溶薄膜包衣、緩、控釋性包衣、滴丸包衣、糖衣包衣及巧克力、糖果包衣的一種高效、節能、安全、潔凈、符合 GMP 要求的機電一體化的包衣設備。
※BGB-D Series High Efficiency Coater is mainly used for tablet, pellet, candy to carry out organic film coating, water soluble film coating, slow and control releasing coating, dropping pellet coating, sugar-coating and chocolate, pharmaceutical and foodstuff industry. It is electromechanical integration coating equipment and conforms to the requirement of GMP. |
|
★設備特點：Features of equipment |
|
※恒壓變量蠕動泵，取消了回油管
※ 觸摸屏顯示
※ 擴展 PLC 模塊，所有參數均在控制面板設置
※隔音、隔熱，對機內起到保溫作用
※ 全密封、負壓狀態操作
※ 噴槍（日本巖田） - 霧化均勻、噴霧面大，方向可調、噴頭無滴漏、無堵塞
※促使物料斜拌、翻滾、交換頻繁避免碎片，提高成品率
※Peristaltic pump with constant pressure variable, eliminate reflux pipe
※Display with touch screen
※Expanded PLC module, all parameters are set in control panel
※Sound and heat insulation, it has temperature insulation effect to inside of machine
※Operate at seal and negative pressure state
※Nozzle(from Japan)-uniform atomizing, big area of spraying, adjustable direction, the nozzle has no dropping leakage and block
※Promote material to stir aslant and writhe. The exchanging frequency is frequence. Therefore it can raise the rate of finished product. |
|
★技術參數:Technical Data |
|
項目 Item |
BGB-5 |
BGB-40 |
BGB-80 |
BGB-150 |
|
生產能力 (kg/ 次 )Capacity |
5 |
40 |
80 |
150 |
|
滾筒轉速（ rpm ） speedof drum |
6-30 |
6-30 |
3-15 |
3-15 |
|
主機電機功率（ kw)power of main motor |
0.75 |
1.1 |
1.5 |
2.2 |
|
高效過濾熱風機電機功率（ kw)power of motor for high efficiency filtering hot air |
0.35 |
0.55 |
1.1 |
1.5 |
|
除塵排風機電機功率（ kw)power of motor for dust removing and air exhaust |
2.2 |
3 |
3 |
5.5 |
|
主機外形尺寸（長 X 寬 X 高） (mm)Overall dimensions of main machine |
810X710X1410 |
1000X800X1600 |
1250X990X1880 |
1570X1260X2060 |
|
|
所有尺寸僅作參考 , 視物料情況 , 本公司擁有變更權利 , 并不另行通知 .
*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon! |
